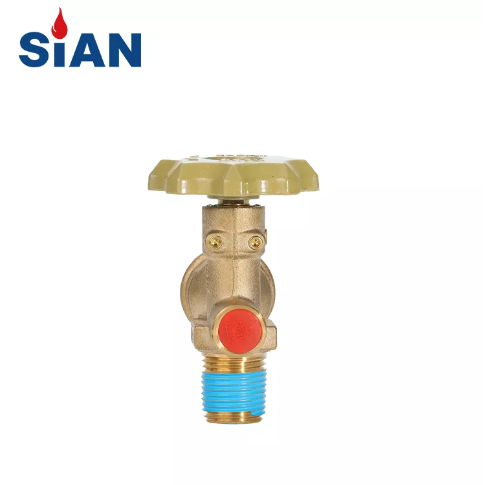

How Does an Excess Flow Device Work in a POL Valve?

Unregulated gas flow creates massive operational risks in both commercial and residential setups. A sheared line or blown regulator can empty a tank rapidly. This scenario risks catastrophic fire and severe property damage. The POL Valve Excess Flow Device acts as a critical fail-safe against these dangers. It sits between an LPG Cylinder Valve and the downstream appliance or pipeline. Its primary job involves stopping dangerous, uncontrolled gas surges instantly.

This article clarifies these vital internal mechanics to improve your system safety. We will differentiate between annoying nuisance trips and actual safety closures. You will learn how the internal spring logic monitors your line pressure continuously. You will also discover how to evaluate and source the right valve for your specific load demands. Understanding these dynamics prevents false lockouts and ensures long-term operational reliability.

Key Takeaways

• A POL Valve Excess Flow Device operates via a spring-loaded mechanism that triggers closure when gas flow exceeds a predetermined safe threshold.

• It is designed to mitigate catastrophic leaks (e.g., severed lines) but will not detect slow, micro-leaks.

• "nuisance tripping" often occurs due to improper user operation (opening the valve too fast) rather than device failure.

• Selecting between specific configurations (such as the V6S2 POL Valve or V9S4 POL Valve) depends entirely on appliance BTU draw, system pressure, and compliance standards.

The Core Mechanism: Inside a POL Valve Excess Flow Device

Understanding how this device works requires looking closely at fluid dynamics. The internal components operate automatically based on system physics. They require no electronic sensors or external power sources. They rely entirely on mechanical tension and gas flow principles.

Pressure Differential Logic

The device monitors the pressure equilibrium inside your gas system. It constantly compares the tank side pressure against the demand side pressure. The tank pushes gas outward with significant force. The downstream pipeline and closed appliance valves create resistance. This resistance maintains a balanced pressure environment. When you open a burner, gas flows smoothly. The pressure drop remains minor and predictable. The valve recognizes this as normal demand.

The Spring and Slug (Check) Assembly

A precision-calibrated spring and a checking slug form the heart of the unit. Under normal flow rates, the spring holds the checking mechanism wide open. Gas travels around the slug effortlessly. The tension of the spring perfectly counterbalances the standard flow velocity.

Surge operation changes this dynamic instantly. Imagine a forklift severs a main gas line. The downstream pressure disappears immediately. The sudden pressure drop creates a massive, high-velocity gas surge. This surge overcomes the carefully engineered spring tension. The rushing gas pushes the slug forward, slamming it against the valve seat. This action shuts off the main gas flow in a fraction of a second. It prevents a massive, dangerous gas release.

The Bleed Hole (Bypass Feature)

You might assume the valve seals perfectly. However, the device does not close 100 percent. Engineers intentionally drill a microscopic bypass hole through the checking slug. This tiny bleed hole allows a minuscule amount of gas to leak through. This feature serves automatic reset functionality.

Once you repair the severed line and close all downstream appliance valves, gas slowly builds up in the pipe. The bleed hole fills the downstream line until the pressure matches the tank pressure. Once equilibrium returns, the spring pushes the slug away from the seat. The valve resets itself automatically, ready for normal operation.

Evaluating Safety Limitations and System Compliance

Safety equipment only works well when you understand its boundaries. Facility managers and homeowners must know exactly what this device can and cannot do. False confidence in safety hardware often leads to dangerous maintenance gaps.

What It Does Protect Against

This mechanism offers excellent protection against macroscopic pressure loss. It stops catastrophic failures instantly. Typical scenarios include severed high-pressure pigtails. It also protects against catastrophic regulator blowouts. If a vehicle backs into a gas line and shears it completely, the valve snaps shut. It prevents the rapid emptying of the entire cylinder. This gives emergency responders time to secure the area safely.

Transparent Limitations

We must build trust by acknowledging technical limitations. An excess flow device is never a substitute for an electronic gas leak detector. It will not close for small pinhole leaks. It ignores loose pipe fittings or slightly cracked hoses. If the leak volume remains below the engineered maximum flow rating, the valve stays open.

For example, a slow leak behind a residential stove will not trigger the spring. The gas velocity simply lacks the force to move the slug. Always implement secondary leak detection systems. Conduct regular bubble tests on all system joints.

Regulatory Context

Industry safety mandates strongly dictate the use of these fail-safes. Organizations like NFPA, DOT, and PHMSA publish rigorous standards. They require integrated excess flow protection for specific residential and RV applications. NFPA 58, for instance, details strict requirements for LP-Gas systems. Compliance means you cannot legally operate certain systems without this protection. Following these codes prevents massive liabilities and ensures baseline community safety.

System Protection Profile Summary

Operational Realities: Diagnosing and Preventing "Nuisance Tripping"

While the safety benefits remain clear, field operations often reveal daily frustrations. Understanding the human element of gas system management is crucial. Nuisance tripping represents the most common complaint among end-users and maintenance teams.

The Business Problem

Frequent false trips lead to immense user frustration. Homeowners assume their gas tank is empty. RV owners wake up to cold mornings with no heating. This confusion leads to expensive, unnecessary maintenance callouts. Fleet operators lose valuable time troubleshooting perceived equipment failures. Minimizing these false trips improves customer satisfaction and lowers service costs.

Root Causes of False Trips

Most nuisance trips occur due to operator error or environmental extremes, not device failure. Here are the primary culprits:

• Rapid Valve Opening: Opening the main cylinder valve too quickly floods an empty downstream line. The device interprets this sudden rush of gas as a severed pipe. It slams shut immediately.

• Simultaneous Appliance Activation: Turning on a furnace, water heater, and stove simultaneously demands massive gas volumes. This drops line pressure instantly, mimicking a macroscopic leak.

• Extreme Cold Weather: Cold temperatures severely reduce LPG vaporization rates. Tank pressure drops significantly. The lower pressure makes the spring mechanism highly sensitive and prone to premature closure.

Standard Reset Protocol

You can easily resolve a false trip without specialized tools. Follow this manufacturer-approved operational sequence to reset the device safely:

1. Close the main cylinder valve completely.

2. Turn off every downstream appliance and pilot light.

3. Wait approximately 60 to 90 seconds. The internal bleed hole needs time to equalize the pressure.

4. Listen carefully for a faint mechanical click. This indicates the spring has reset the slug.

5. Open the main cylinder valve extremely slowly. Crack it open just slightly at first.

6. Once the lines pressurize fully, open the valve the rest of the way.

Solution Evaluation: V6S2 POL Valve vs. V9S4 POL Valve

Procurement and engineering teams face important decisions when upgrading hardware. You cannot select a valve based on price alone. You must evaluate specific models based on your unique system architecture. Let us examine two common configurations.

Shortlisting Logic

Evaluating valves requires analyzing your maximum possible load. You need to know the combined BTU draw of every appliance on the line. If you select a valve with a closing threshold that is too low, you guarantee constant nuisance trips. If the threshold sits too high, the safety feature might fail to activate during a mid-sized pipe rupture. Precision matters.

V6S2 POL Valve Integration

The V6S2 POL Valve serves standard residential or light commercial applications exceptionally well. Engineers design these units for moderate flow capacities. They handle typical home heating and cooking loads without false tripping. They feature standard thread specifications that integrate smoothly with standard regulators. This makes them a highly reliable choice for traditional home installations where gas demand remains predictable.

V9S4 POL Valve Characteristics

Industrial or heavy-draw environments require robust solutions. The V9S4 POL Valve provides key differentiators for these demanding settings. It typically features higher flow thresholds before the safety mechanism triggers. The material specifications often include heavier brass construction to withstand harsh environmental conditions. They also boast specific OEM compatibility for specialized commercial fleet vehicles. Choose this model when running multiple high-demand commercial burners simultaneously.

Evaluation Criteria

Always match the device's closing flow rate strictly to the maximum total BTU draw. Review the data plates on your furnaces, water heaters, and stoves. Add those BTU numbers together. Your valve's closing threshold must sit comfortably above that total number. This prevents premature closure while maintaining a strict safety margin for actual ruptures.

Implementation and Long-Term Maintenance Risks

Buying the right equipment solves only half the problem. Poor installation and neglected maintenance can ruin even the best safety hardware. Field technicians must follow strict guidelines to ensure longevity.

Installation Best Practices

Proper installation requires exact torque applications. Technicians must use properly calibrated wrenches. Never over-tighten the brass connections. Over-tightening can physically deform the internal valve seat. This deformation permanently alters the spring calibration, leading to erratic behavior. Always use approved, gas-rated sealing compounds or specialized PTFE tape on the threads. This ensures a leak-proof connection without stressing the brass housing.

Lifecycle Expectations

These devices do not last forever. Environmental factors constantly attack the internal components. High humidity environments cause slow internal corrosion. Extreme temperature fluctuations stress the internal spring metal, eventually causing fatigue. Furthermore, contaminated LPG can carry microscopic debris. This dirt can easily clog the critical bleed hole. If the bleed hole clogs, the valve will never reset automatically after a trip. Regular filter changes and using high-grade gas extend the valve's lifespan.

Testing and Auditing

Facility managers should implement routine verification protocols. You must verify the excess flow function safely during scheduled maintenance windows. Technicians can perform a controlled surge test by closing downstream safety valves and releasing pressure from a test port. Ensure the mechanism snaps shut definitively. If the valve responds sluggishly or fails to seal properly, replace the entire unit immediately. Never attempt to rebuild the internal spring mechanism in the field.

Conclusion

Understanding the mechanical limits and flow thresholds of your safety hardware is non-negotiable. A properly matched excess flow mechanism saves lives and protects valuable property. It acts as an invisible guardian against macroscopic failures. However, it requires proper operator knowledge to prevent annoying false trips. By mastering the reset protocols and respecting the engineering boundaries, you ensure a safe, frustration-free gas system.

Do not leave your system safety to chance. Calculate your exact system flow requirements before making a purchase. Tally up your maximum BTU draw and evaluate your environmental risks. We strongly encourage you to consult with a dedicated technical sales engineer. They can help you perform accurate spec-matching and streamline your bulk ordering process today.

FAQ

Q: Why is my LPG tank not releasing gas when the valve is open?

A: The excess flow device has likely tripped due to rapid opening. To fix this, close the cylinder valve completely. Wait roughly one minute for the pressure to equalize via the internal bleed hole. You may hear a faint click. Afterward, open the valve very slowly to resume normal flow.

Q: Can a POL Valve Excess Flow Device go bad?

A: Yes, they can fail over time. The internal spring can suffer from metal fatigue or corrosion. Additionally, dirt and debris in the gas line can clog the microscopic bleed hole. This leads to permanent lock-outs or a dangerous failure to close during an actual surge.

Q: What is the difference between an excess flow valve and a standard check valve?

A: A standard check valve strictly prevents reverse flow, acting as a one-way street. An excess flow device allows gas to flow in the intended direction. However, it restricts that forward flow if the gas volume suddenly exceeds a safe, engineered threshold.
