LET'S KNOW ABOUT LPG VALVE

A LPG cylinder valve has a threaded connection at the stem base for assembling to LPG gas cylinder. The main function of a LPG safety Valve is to control the ON/OFF switch of the gas cylinder, so it's also called LPG gas control Valve. Propane tank valve is generally used in home kitchen, restaurant kitchen, camping, BBQ, etc. High quality brass LPG gas cylinder valve makes your life safe and convenient.

3
DIFFERENT TYPES OF LPG VALVE

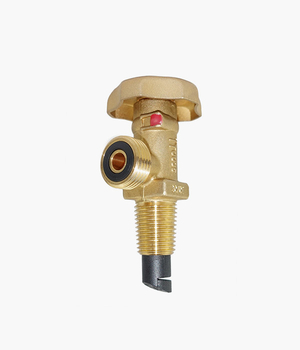

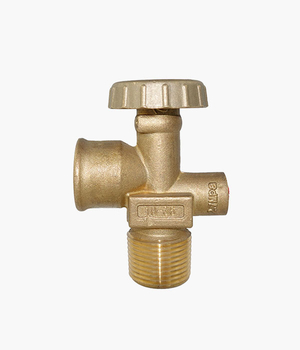

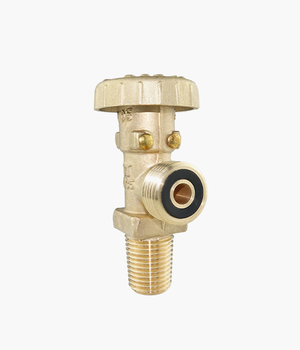

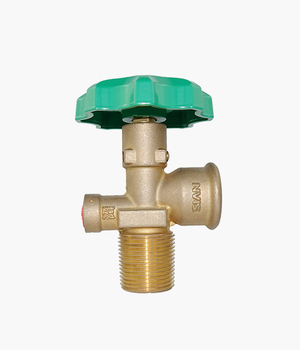

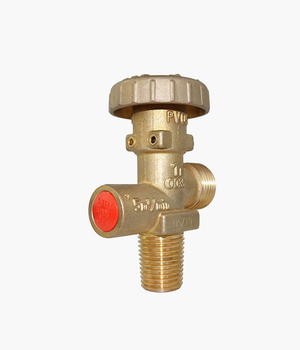

Handwheel LPG Cylinder Valve with Threaded Connection Outlet

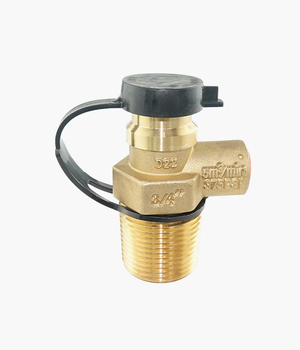

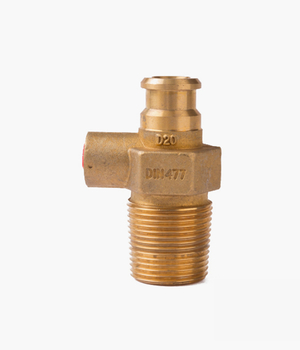

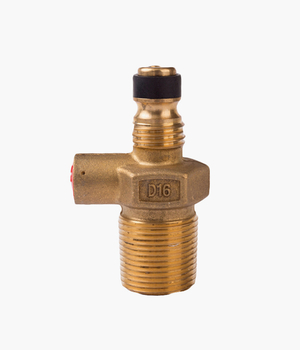

Self-closing LPG Cylinder Valve with Clip On Connection Outlet
Self-closing LPG Cylinder Valve with Threaded Connection Outlet​​​​​​​​​​​​​​
​​​​​​​

Products Category
  • Products Category
  • Products Category One
  • Products Category One
  • Products Category One
  • Products Category One

PARAMETERS THAT PEOPLE CARE

Parameters of LPG Gas Cyinder Valve
NO. Classification Product ID Standard Inlet Thread Outlet Thread WP(MPa) Diameter(mm) Medium Safety Device
1 Handwheel LPG Cylinder Valve with Threaded Connection Outlet 06-610-782 EN15995 3/4-14 NGT 0.885-14NGO-LH 240psi 6.5 LPG 375PSI
2 06-610-790 UL1769 3/4-14 NGT 0.885-14UNS-LH
+1.312-5ACME
240psi 7 LPG 375PSI
3 06-610-732 UL1769 3/4-14 NGT 0.885-14NGO-LH 250psi 7 LPG 2.7MPa
4 06-610-750 EN15995 17E W21.8x1.814-LH 17BAR 6 LPG N/A
5 06-610-727 EN15995 W19.8x1/14 W21.8x1.814-LH 20BAR 7 LPG 35bar
6 06-610-728 EN15995 W19.8x1/14 W21.8x1.814-LH 20BAR 7 LPG N/A
7 Self-closing LPG Cylinder Valve with Clip On Connection Outlet 06-610-726 EN14245 3/4-14 NGT Φ22 17BAR 6.35 LPG 26BAR
8 06-610-769 MS831 W28.8x1/14 Φ20 17BAR 6.35 LPG 375PSI
9 06-610-788 NTE INEN 116:2016 3/4-14 NGT Φ22 17BAR 6.35 LPG N/A
10 06-610-776 GB/T 7512 25E Φ28.5 17BAR 4 LPG 375PSI
11 06-610-783 EN14245 3/4-14 NGT Φ16 25BAR 4.2 LPG 26BAR
12 Self-closing LPG Cylinder Valve with Threaded Connection Outlet 98-015-010 EN14245 M22x1.25 M16x1.5-LH 18BAR 8.5 LPG N/A
13 98-015-019 EN14245 M22x1.25 M16x1.5-LH 25BAR 8.5 LPG N/A
14 98-015-011 ABNT NBR 5426 3/4-14 NGT 5/8-11UNC 1.7MPa 9.3 LPG N/A
15 06-610-767 ABNT NBR 8614 3/4-14 NGT 5/8-11UNC 1.7MPa 9.3 LPG 375PSI

YOUR RELIABLE PARTNER —— SIAN

Since the Ningbo Fuhua Valve Co., Ltd established 30 years ago, the company has grown to become a China-leading producer of very high quality gas control products and systems. As a professional manufacturer engaged in the research, development, sale and service of Fire extinguisher valve, Gas cylinder valve, High-pressure valve, CGA valve for medical purpose, LPG and CNG valve,etc.


Achieve the highest level of safety and performance

We have obtained the certification of ISO9001 & ISO14001 issued by BV and TUV.

Our experienced staff members are always available to meet your requirements and ensure to make our customers satisfaction.

Present in over 50 countries with factories and we have set-up branches/R&D centers in United States and Europe.

8fuben
Reply in 24 hours.

8-2fuben
Customized valve
model no.
8-2fuben
Every valve will be tested before delivery.
8-3fuben
Delivery on time & excellent after-sales service.
8-5fuben
High quality, reliable price.
WHAT OUR CLIENTS SAY​​​​​​​

RECOMMEND PRODUCT

•Model: PV6 •WP (MPa): 240PSI •Inlet Thread : 3/4’’-1/14NGT •Outlet Thread : Venezuela Standard Inflatable Head
$0
$0
Name: V9 POL Valve •Medium: LPG •WP(MPa): 1.7MPa •Inlet Thread: 3/4‘’-14NGT •Outlet Thread: G5/8-LH
$0
$0
•Model: 06-610-713 •Medium: LPG •WP (MPa): 17bar (250psi) •Safety Device:27bar (377psi) •Inlet Thread : 3/4-14 NGT •Outlet Thread : 0.885-14NGO-LH-INT
$0
$0
•Model: 06-610-733 •Medium: LPG •WP (MPa): 17bar (250psi) •Safety Device:27bar (375psi) •Inlet Thread : 3/4-14 NGT •Outlet Thread : 0.885-14NGO-LH-INT
$0
$0
•Model: 06-610-746B •Medium: LPG •Inlet Thread:Φ23.7x2 •Outlet Thread:Φ21.7x1.814-LH •WP (MPa): 25bar(360psi)
$0
$0
•Model: 06-610-762 •Medium: LPG •Inlet Thread:3/4“-14 NGT •Outlet Thread:0.885“-14NGO-LH-INT •WP (MPa): 17bar (250psi) •Safety Device:26bar (375psi)
$0
$0
•Model: 06-610-771 •Medium: LPG •Inlet Thread:3/4“-14 NGT •Outlet Thread:0.885“-14NGO-LH-INT •WP (MPa): 17bar (250psi) •Safety Device:26bar (375psi)
$0
$0
•Model: 06-610-773 •Medium: LPG •Inlet Thread:3/4“-14 NGT •Outlet Thread:0.885“-14NGO-LH-INT •WP (MPa): 17bar (250psi) •Safety Device:26bar (375psi)
$0
$0
•Model: 06-610-778 •Medium: LPG •Inlet Thread: 18T •Outlet Thread: W21.8*1.814-LH •WP (MPa): 17bar (250psi) •Safety Device:21bar (305psi)
$0
$0
•Model: 06-610-780 •Medium: LPG •Inlet Thread:3/4“-14 NGT •Outlet Thread:0.885“-14NGO-LH-INT •WP (MPa): 17bar (250psi) •Safety Device:26bar (375psi)
$0
$0
•Model: 06-610-792 •Medium: LPG •Inlet Thread: 18T •Outlet Thread: G5/8-LH •WP (MPa): 17bar (250psi) •Safety Device:21bar (305psi)
$0
$0
•Model: 06-610-803 •Medium: LPG •WP (MPa): 17bar •Inlet Thread : 18T •Outlet Thread : G3/8-LH
$0
$0
•Model: 06-610-802B •Medium: LPG •Inlet Thread:25E •Outlet Thread:0.885“-14NGO-LH-INT •WP (MPa): 17bar (250psi) •Safety Device:26bar (375psi)
$0
$0
•Model: 06-610-784 •Medium: LPG •Inlet Thread: 25E •Outlet Thread: Φ21 •WP (MPa): 17bar •Safety Device:21bar
$0
$0
•Model: 06-610-729 •Medium: LPG •Cylinder Nominal Working Pressure: 240psi •Inlet Thread: 3/4-14 NGT
$0
$0
•Model: 06-820-705 •Medium: LPG •Inlet Thread:3/4-14NGT •Outlet Thread:0.885“-14NGO-LH •WP (MPa): 17bar (250psi) •Safety Device:26bar (375psi)
$0
$0
•Model: 06-820-706 •Medium: LPG •Inlet Thread:25E •Outlet Thread:0.885“-14NGO-LH •WP (MPa): 17bar (250psi) •Safety Device:26bar (375psi)
$0
$0
•Model: 06-840-724 •Medium: LPG •WP (MPa): 240psi •Inlet Thread: 3/4-14 NGT
$0
$0
Name: LPG Venezuela PV6 Valve •Medium: LPG •WP(MPa): 1.7MPa •Inlet Thread:3/4''-1/14NGT •Outlet Thread: Venezuela Standard Inflatable Head
$0
$0
Name: LPG POL Valve •Medium: LPG •WP(MPa): 1.7MPa •Inlet Thread: Φ23.2*2 •Outlet Thread: 0.885“-14UNS-LH
$0
$0
