POL Valve for 100 lb Propane Tanks: What Connection Do You Need?

Upgrading to a 100 lb propane tank often brings an immediate roadblock. You quickly realize standard grill or RV appliance hoses do not fit the tank's valve. Standard 20 lb tanks use hand-tightened QCC1/Type 1 connections. Conversely, commercial-grade 100 lb tanks utilize legacy POL valves. Engineers designate this standard as CGA-510. This mismatch leaves many users wondering how to safely connect their equipment.

You cannot simply force a connection between these two different standards. Understanding the technical specifications is crucial for a safe setup. This guide breaks down the technical differences between these systems. We evaluate adapter solutions versus direct regulator replacements. Ultimately, we outline the safest, most compliant methods for integrating a 100 lb Propane POL Valve into your current setup.

Key Takeaways

• Hardware Mismatch: 100 lb tanks use internally threaded, left-hand POL valves. Most consumer appliances are pre-fitted for external QCC1 threads.

• Connection Solutions: You can bridge this gap using a POL-to-QCC1 adapter (cheapest, flexible) or a dedicated POL regulator hose (safest, lowest leak risk).

• Sealing Differences: Unlike modern QCC1 fittings, standard POL fittings require wrench tightening and rely on metal-to-metal or soft-nose O-ring compression to seal.

• Implementation Risk: Using a 20 lb regulator on a 100 lb tank is physically possible with an adapter, but may restrict BTU flow for high-demand applications (e.g., whole-home heating or large brewing setups).

1. Understanding the 100 lb Propane POL Valve Standard (CGA-510)

The CGA-510 standard dominates the high-capacity propane industry. Professionals commonly refer to it as the POL standard. The name originates from Prest-O-Lite, the company that originally designed the fitting. You will find this valve on almost all DOT-approved 100 lb cylinders in North America.

This valve relies on internal, reverse threading. You must turn the fitting counter-clockwise to tighten it. Engineers designed this left-hand thread specifically for high-pressure combustible gases. This prevents users from accidentally connecting incompatible gas equipment to a propane source. A standard commercial setup requires this robust connection to safely handle large volumes of LP gas.

POL vs. QCC1/Type 1

The propane industry evolved significantly over the decades. Older POL standards prioritize durability and high flow rates. However, they lack some modern conveniences. Legacy POL fittings do not include built-in, thermal-sensitive, quick-close safety features. You must perform stricter manual safety checks when using them.

Modern QCC1 fittings cater directly to the everyday consumer. They feature external, right-hand threads. You can tighten them easily by hand. They also include a thermal shut-off mechanism. This mechanism stops gas flow if temperatures exceed a safe threshold. Since legacy POLs lack this automatic shut-off, proper wrench-tightening becomes a mandatory safety step.

Standard Comparison Chart: CGA-510 vs. Type 1 Features

O-Ring vs. Metal-to-Metal Seating

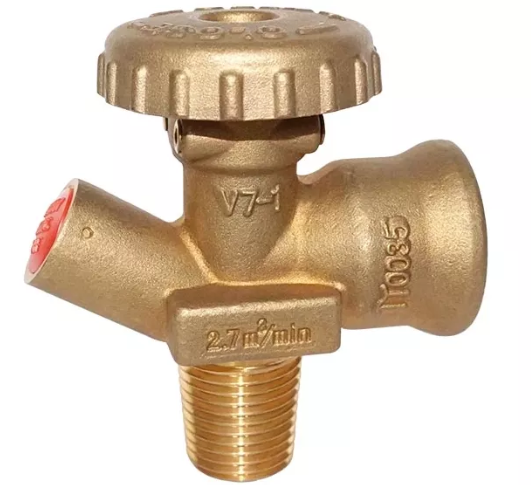

The internal sealing mechanism of the 100 Pound LPG Cylinder Valve also evolved. Early versions relied entirely on a metal-to-metal seat. You had to tighten the brass bullet-shaped nose extremely hard against the brass valve interior. Any scratch on either surface could result in a dangerous gas leak.

Modern engineering introduced the "soft-nose" POL fitting. This upgraded design incorporates a small rubber O-ring on the brass tip. When you tighten a soft-nose fitting, the O-ring compresses against the valve's inner wall. This creates a superior, airtight seal with significantly less wrench torque. It also reduces wear and tear on the internal threads over years of use.

2. Connection Solutions: Adapters vs. Dedicated Regulators

You have two primary ways to connect your existing appliances to a 100 lb cylinder. Each method carries specific advantages and technical trade-offs. You must evaluate your specific BTU requirements and setup permanence before choosing.

Solution A: POL to QCC1 Adapters (The Retrofit Approach)

An adapter bridges the gap between the tank and your current regulator hose. You screw the adapter's male POL end into the cylinder. You then attach your appliance's female QCC1 hose to the adapter's external threads.

• Pros: This approach features a low upfront cost. It allows you to switch appliances between 20 lb and 100 lb tanks effortlessly. Many adapters also include integrated gauges. These gauge-equipped options provide basic pressure reading capabilities to monitor fuel levels.

• Cons: Every adapter introduces an extra connection point in the gas line. This statistically increases the risk of micro-leaks. Adapters also push the regulator further away from the tank body. This can create physical stress on the valve if the hose gets pulled.

Solution B: Direct POL Regulator Hoses (The Permanent Approach)

A direct replacement involves removing your appliance's original QCC1 hose entirely. You replace it with a dedicated POL regulator hose. This new assembly screws directly into the 100 lb cylinder.

• Pros: This method eliminates adapter failure points entirely. Manufacturers design these regulators for exact BTU flow rates required by high-demand appliances. This represents the safest, lowest-leak-risk option for stationary setups.

• Cons: Installation requires unscrewing factory NPT connections on the appliance side. You must clean the old sealant off the threads. You then have to apply new gas-rated tape before attaching the new regulator line.

Decision Framework

Choosing the right hardware depends on your usage environment. Follow this practical framework to make the safest choice:

1. Assess the Setup Duration: Use adapters for temporary or mobile setups. Adapters work great for weekend camping or temporary construction heating.

2. Evaluate the BTU Load: Check your appliance manual. If your appliance draws over 100,000 BTUs, avoid standard BBQ regulators. Invest in a high-capacity direct regulator instead.

3. Determine Permanence: Default to direct regulators for permanent installations. Home heating, large backup generators, and whole-RV supplies require hard-plumbed reliability.

4. Check Equipment Compatibility: Ensure your existing POL Valve threads remain clean and undamaged before attaching either solution.

3. High-Capacity Setups: Adapting Female POL to NPT

Many professional users outgrow standard appliance hoses. You might need to build a custom gas delivery system. Evaluators building custom manifolds, homebrew setups, or residential heating lines often require transitions to standard National Pipe Thread (NPT). NPT fittings allow you to connect rigid black iron or copper piping.

Target Use Case

High-capacity systems demand precise engineering. A standard BBQ setup might pull 30,000 BTUs. A residential furnace or a commercial brewing burner can easily draw 200,000 BTUs. These setups need larger internal pipe diameters. Transitioning from the tank directly to NPT pipe ensures maximum gas volume delivery without restriction.

Step-by-Step Transition

You must follow strict procedures when adapting the tank to hard piping. Improper NPT connections represent a major source of dangerous gas leaks.

1. Inspect the Tank: Ensure the 100 lb Propane Tank Valve is completely closed and free of debris.

2. Select the Tailpiece: Purchase a high-pressure POL to NPT adapter. Most users need a transition to 1/4-inch or 3/4-inch NPT depending on their manifold size.

3. Prepare the Threads: Clean the male NPT threads thoroughly. Do not apply any sealant to the POL side of the fitting. The POL side seals via mechanical compression, not thread sealant.

4. Apply the Sealant: Wrap the male NPT threads strictly according to gas compliance standards (detailed below).

5. Assemble and Torque: Thread the NPT connection together securely. Then, insert the POL nose into the cylinder valve and tighten counter-clockwise using the proper wrench.

Thread Sealant Compliance

You must pay strict attention to the materials you use. We explicitly warn against using standard white plumbing tape on any propane connection. White tape degrades quickly when exposed to LP gas. The chemicals break down the thin PTFE, leading to severe leaks.

You must require the use of yellow, gas-rated PTFE tape. Manufacturers engineer this thicker tape specifically for combustible gases. Alternatively, you can use an approved liquid pipe dope. The pipe dope must display a certification for LP gas resistance. Apply the sealant only to the male NPT threads, leaving the first two threads bare to prevent internal system contamination.

4. Evaluating Upgrades: The MX100 POL Valve

Cylinder valves do not last forever. Heavy use, weather exposure, and frequent wrenching eventually degrade the brass threads. When a 100 lb tank starts leaking from the handwheel or fails to seal, you must replace the core component.

Component Overview

Industry professionals often introduce the MX100 POL Valve as a benchmark replacement valve for aging or damaged cylinders. Manufacturers build this component to handle rigorous outdoor conditions. It features heavy-duty forged brass construction. This durability ensures a long service life, even under the strain of continuous high-capacity gas flow.

Safety Features

Modern replacement parts incorporate crucial safety upgrades. The most critical upgrade is the integrated excess flow valve. Engineers designed this internal mechanism to automatically snap shut if gas flow suddenly spikes.

If a catastrophic line break occurs down your supply pipe, the excess flow mechanism detects the massive pressure drop. It instantly restricts the gas supply to a minimal bleed level. This feature prevents the rapid emptying of a 100 lb cylinder into an enclosed space, mitigating severe explosion risks.

Installation Caveat

You cannot simply unscrew an old valve and drop in a new one. Swapping a tank valve is not a DIY task for the end-user. It requires professional evacuation of the remaining liquid propane. Propane technicians use specialized clamping tools and high-leverage torque wrenches to break the factory thread seal.

Furthermore, Department of Transportation (DOT) regulations govern cylinder modifications. A certified professional must install the replacement. They must also perform a post-installation recertification test. They will stamp the cylinder collar with a new date code. Never attempt to replace this part yourself.

5. Implementation Risks and Safety Checks

Setting up a large propane cylinder involves unique risks. Even with the right adapters and regulators, operational mistakes can compromise your system. You must observe strict protocols during the initial setup and every subsequent tank swap.

The Purging Reality

Many consumers buy a brand-new 100 lb cylinder online or at a hardware store. They hook it up, only to find their appliances will not stay lit. This points to a common pitfall. Manufacturers ship new tanks pressurized with inert gas or compressed air to prevent internal rusting during transit.

You cannot simply fill a new tank with propane. The tank must be vacuum-purged by a professional filler before the very first propane fill. The technician hooks the cylinder to a vacuum pump, removing all the air. If you skip this step, the trapped air mixes with the propane. Your appliances will experience erratic burning, sputtering flames, or total failure to ignite.

Left-Hand Threading Dynamics

Connecting the hardware requires careful attention to the thread mechanics. We must remind users that POL fittings tighten counter-clockwise. A common mistake involves forcing the wrench in the wrong direction, which strips the brass threads.

Torque application is equally important. Over-torquing a soft-nose fitting can crush and tear the rubber O-ring. Once the O-ring tears, the seal fails entirely. Conversely, under-torquing older metal-to-metal noses will cause persistent micro-leaks. You must apply firm, steady pressure until the fitting seats tightly, but avoid aggressive over-tightening.

Leak Verification

You must verify the integrity of your connections every time you move the hardware. We mandate the soap-bubble test at every single tank swap. Mix dish soap and water in a spray bottle. Spray the solution generously over the cylinder connection, the adapter, and the regulator body. Turn the gas on slowly. If you see expanding bubbles, you have a leak. Shut the gas off immediately and re-tighten the fittings.

Never rely on your sense of smell alone. Propane manufacturers add ethyl mercaptan to give the gas its distinct rotten egg odor. However, in extremely cold weather, this odorant can actually settle at the bottom of the tank. Furthermore, older pipes can absorb the smell over time. The soap test remains the only foolproof method for leak detection.

Conclusion

Safely utilizing a large-capacity cylinder requires the right hardware and proper installation protocols. A 100 lb tank offers exceptional runtimes, but it demands respect for its commercial-grade fittings.

We base our final recommendation logic on your intended application. If you are integrating a 100 lb tank into a standard BBQ or RV setup temporarily, source a high-quality brass POL-to-QCC1 adapter with an integrated gauge. This offers flexibility and ease of use. However, for permanent home heating or high-BTU loads, invest in a dedicated POL regulator. This permanently eliminates adapter failure points, minimizes leak risks, and maximizes gas flow efficiency.

Your next steps involve assessing your current equipment. Advise yourself to check your appliance's total BTU requirements before buying any parts. Inspect your current hose connection type. Once you know your flow requirements and thread types, you can purchase the correct adapters or regulators to safely bring your system online.

FAQ

Q: Can I use a 20 lb tank regulator on a 100 lb propane tank?

A: Yes, but only with a POL-to-QCC1 adapter. However, verify the regulator's BTU capacity carefully. A standard BBQ regulator may not output enough gas for larger multi-appliance setups connected to a 100 lb tank. High-demand appliances will starve for fuel if the regulator cannot process the required flow rate.

Q: Do all 100 lb propane tanks use the same valve?

A: Yes, almost all DOT-approved 100 lb tanks in North America use the CGA-510 (POL) standard. This uniformity ensures that commercial delivery services and professional fill stations can reliably connect to and refill these larger cylinders across different regions.

Q: Why doesn't my grill hose fit my new 100 lb tank?

A: Grills use an external QCC1/Type 1 thread, which is hand-tightened. 100 lb tanks use an internal, reverse-thread POL connection requiring a wrench. Because the threading direction and physical sizes differ completely, an adapter is required to bridge the two connection types.

Q: Are soft-nose POL fittings safer than hard-nose ones?

A: Soft-nose fittings feature a rubber O-ring that provides a highly reliable seal with less wrench torque. This reduces wear on the internal valve threads over time. Because they seal more easily and reliably, professionals highly recommend them, especially for setups requiring frequent tank swaps.
